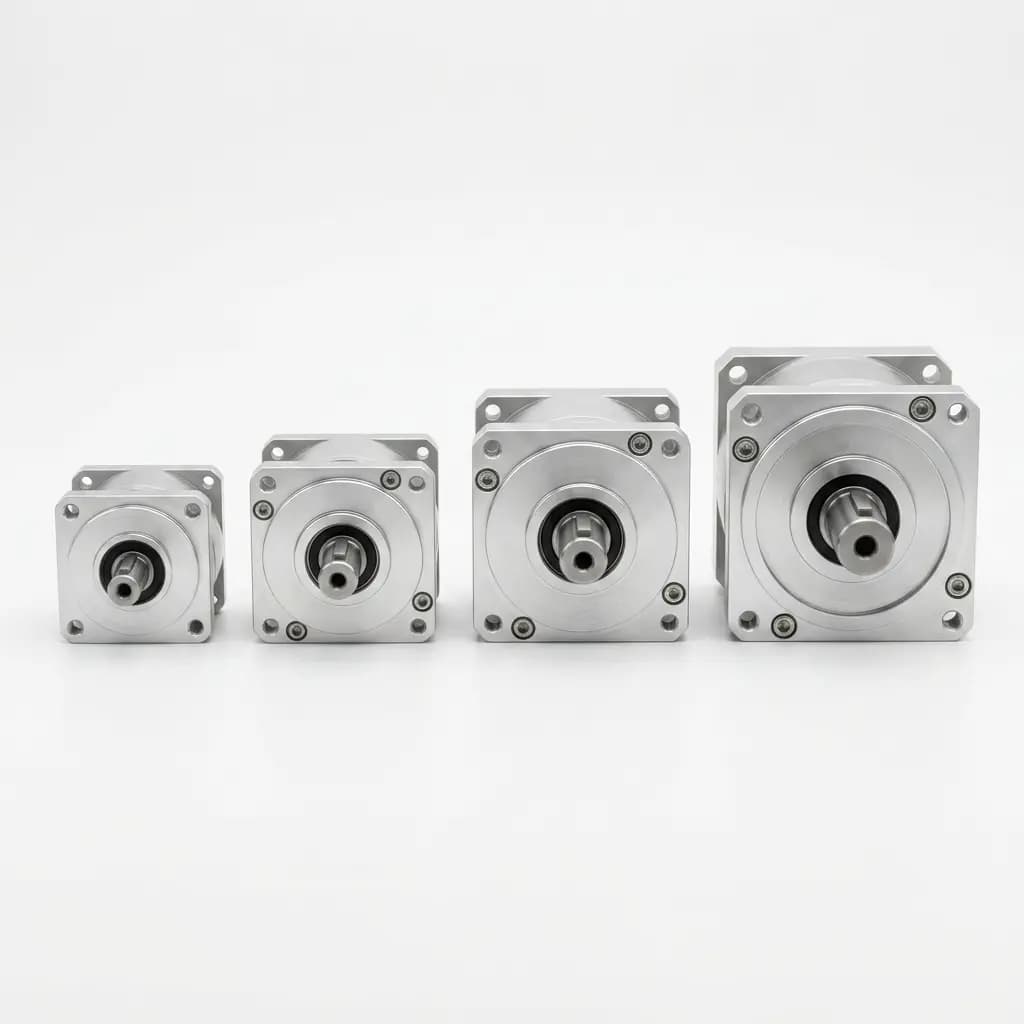

Frame-size lineup for quick sizing comparison
Product Series

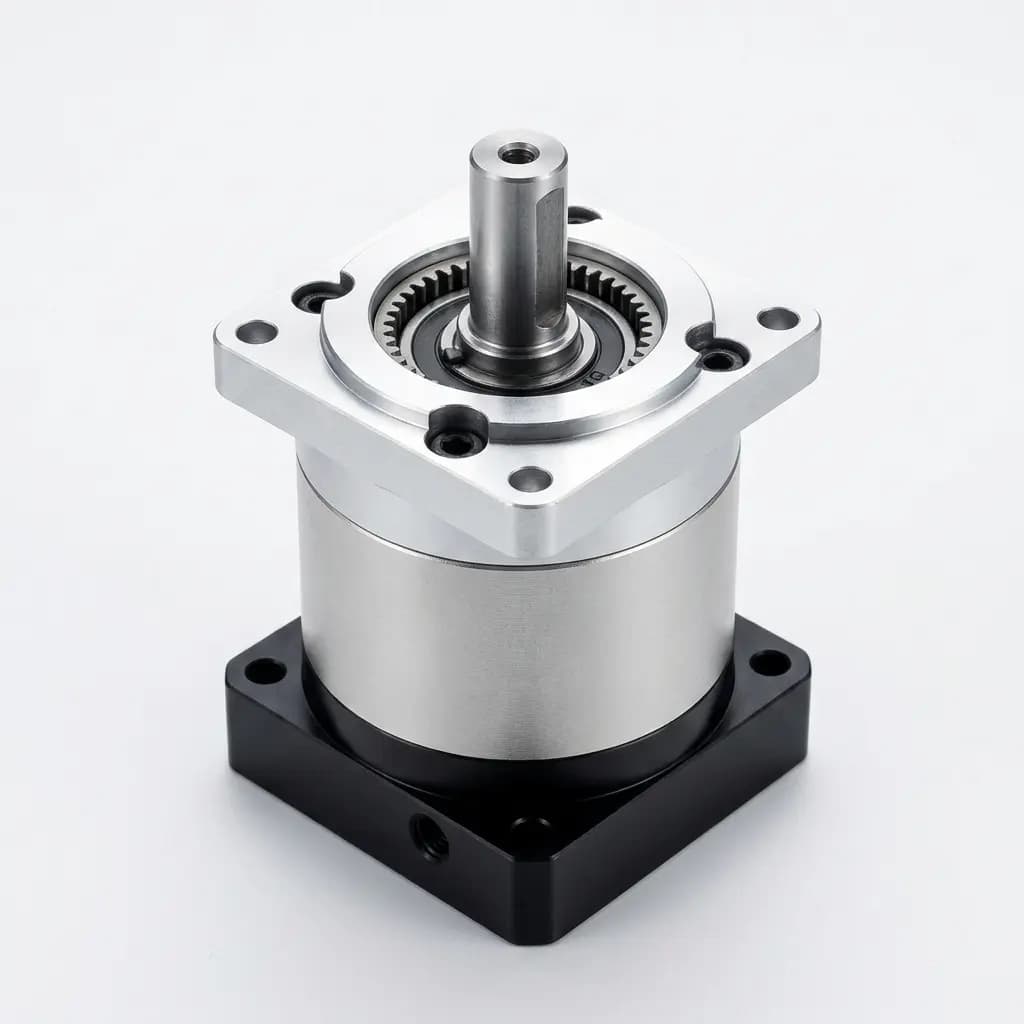

Helical Planetary Gearbox
Low Noise, High Precision Series
Built for applications where smooth meshing and low-backlash response are required under continuous duty.
Visual references
Image set selected by model naming semantics for quick engineering context.

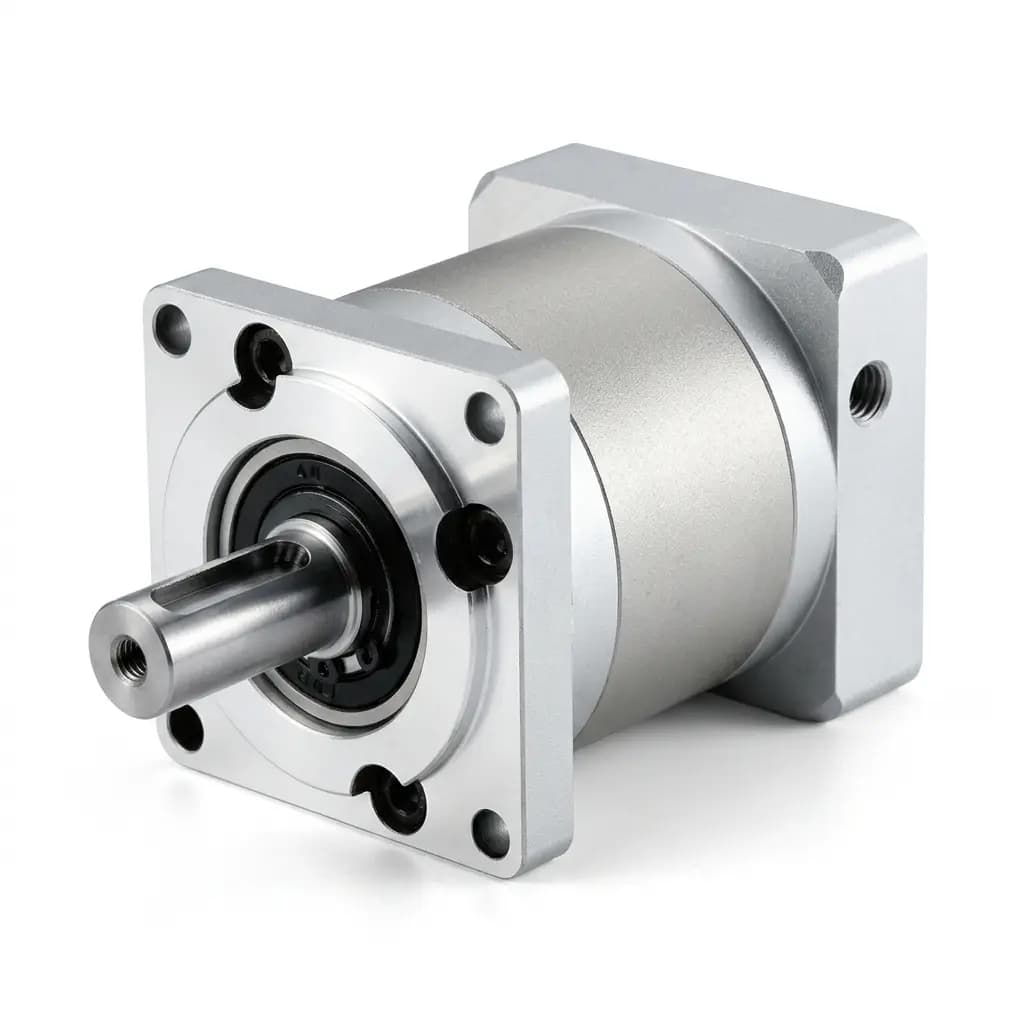

HDF series isometric view showing output shaft and bearing seal

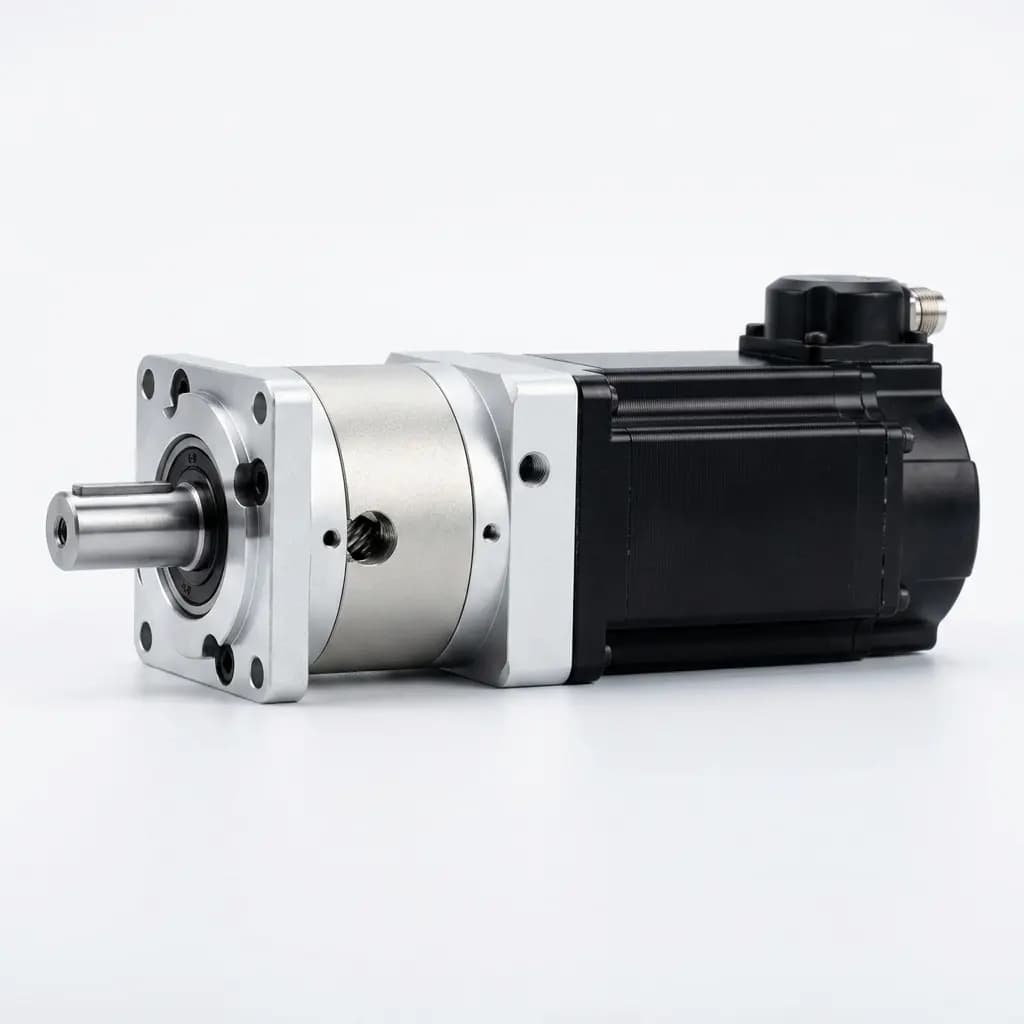

Servo-ready configuration for integration planning

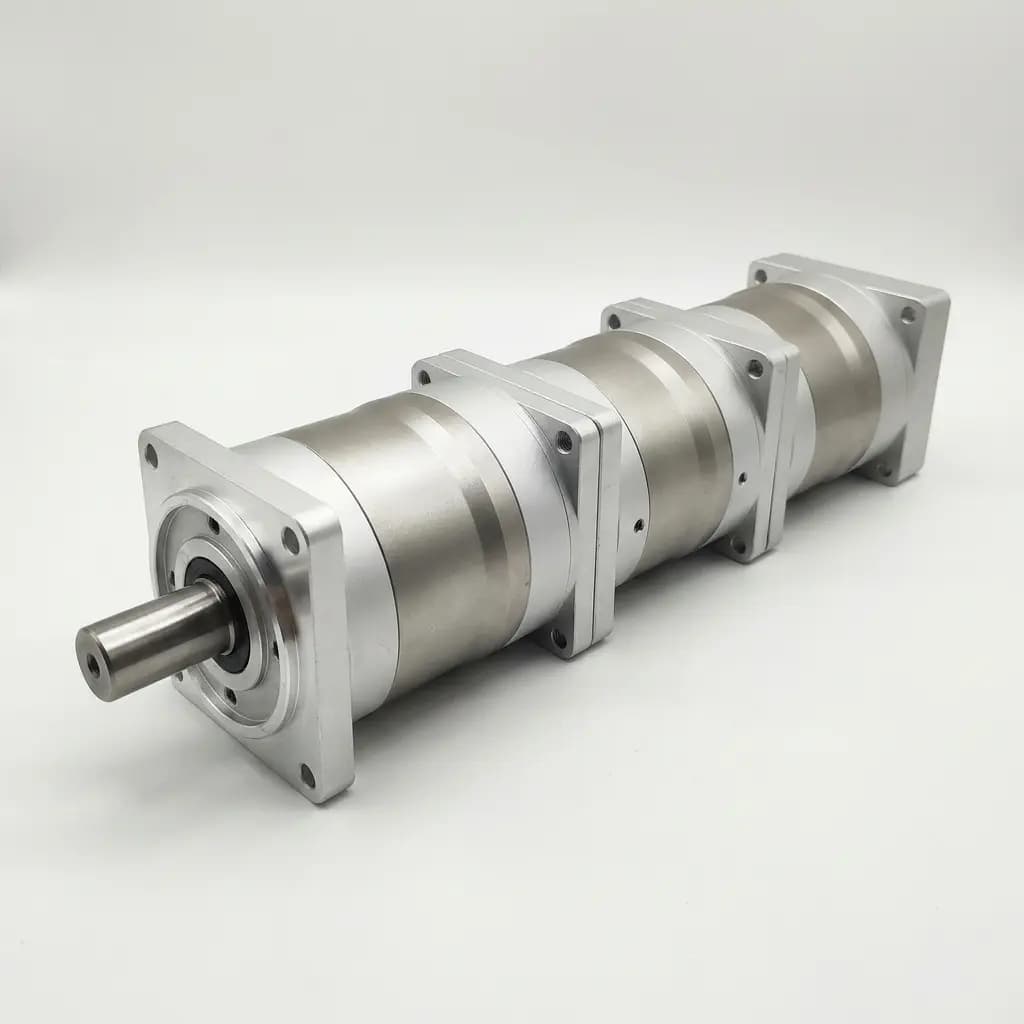

Multi-stage variant for high-ratio applications

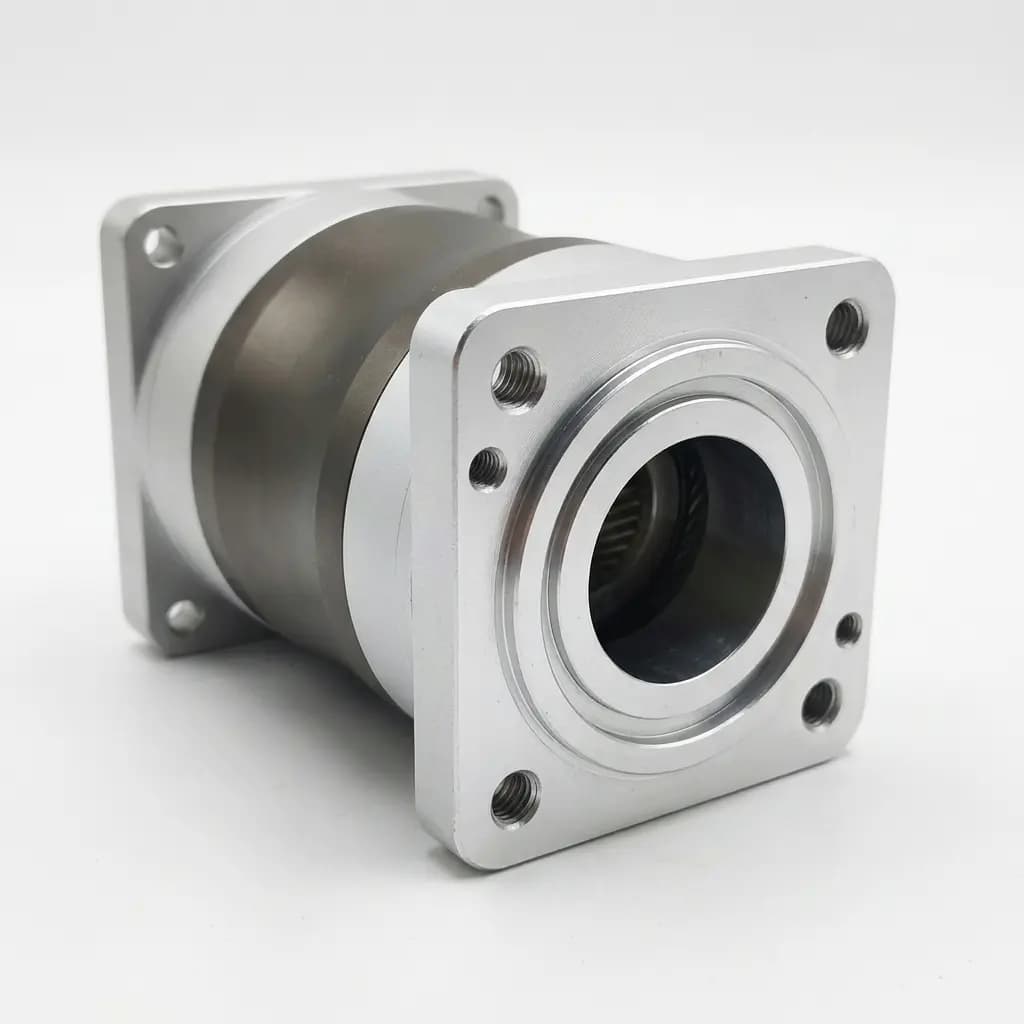

Input interface detail for motor matching checks
Heavy-duty 180mm frame for high-torque industrial applications
Application fit
- CNC and laser motion axes
- Packaging and indexing stations
- High-precision automation transfer modules
Key specs
- Backlash classes suitable for precision positioning projects
- High torsional stiffness for servo-axis control
- Wide reduction ratio coverage with multi-stage options
- Compact footprint with industrial mounting interfaces
Compatibility context
- Servo motor flange adaptation review
- Input/output interface checks for retrofit scenarios
- Support for OEM frame and shaft customization
OEM customization notes
- Custom shaft and flange dimensions available after drawing review.
- Project-based ratio/torque optimization support for batch production.
Selection Briefing Checklist
Use this checklist before requesting quotation so proposals are comparable and engineering-usable.
| Checklist Item | Required Information |
|---|---|
| Motion requirement fit | Ratio target, output speed, rated and peak torque window. |
| Precision requirement fit | Backlash class expectation and repeatability sensitivity. |
| Mechanical interface fit | Motor model, pilot diameter, bolt pattern, input/output shaft format. |
| Duty and environment fit | Duty cycle, ambient temperature, sealing and vibration context. |
| Commercial delivery fit | Sample quantity, pilot batch, annual demand, lead-time target. |
Expected Response Deliverables
- Series-level recommendation with key assumptions
- Compatibility notes for interface constraints
- OEM feasibility comments for non-standard requests
- Separated sample and production lead-time guidance
