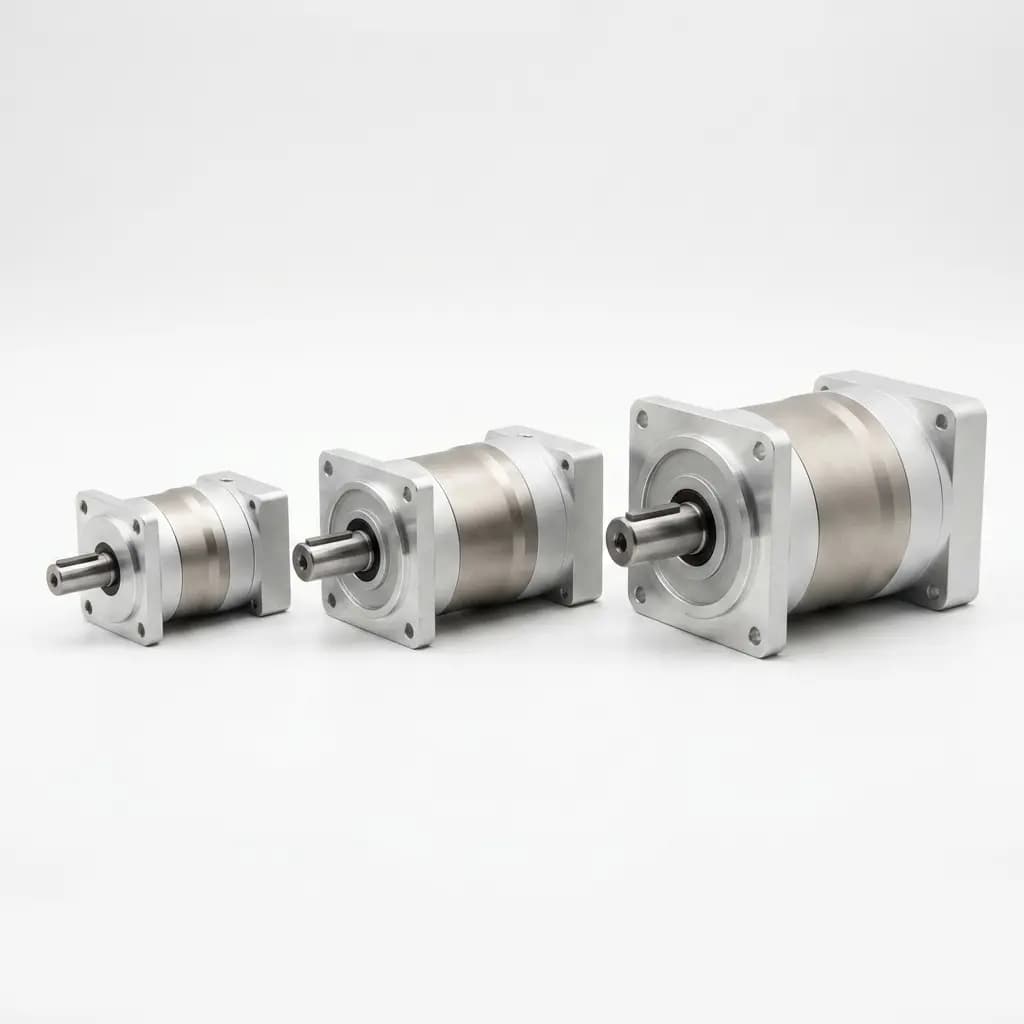

Series lineup for quick frame-size selection
Product Series
Inline Planetary Gearbox
Coaxial Form Factor for Straight-Line Transmission
Supports coaxial machine architecture with stable reduction performance for OEM builders requiring straightforward integration.
Visual references
Image set selected by model naming semantics for quick engineering context.

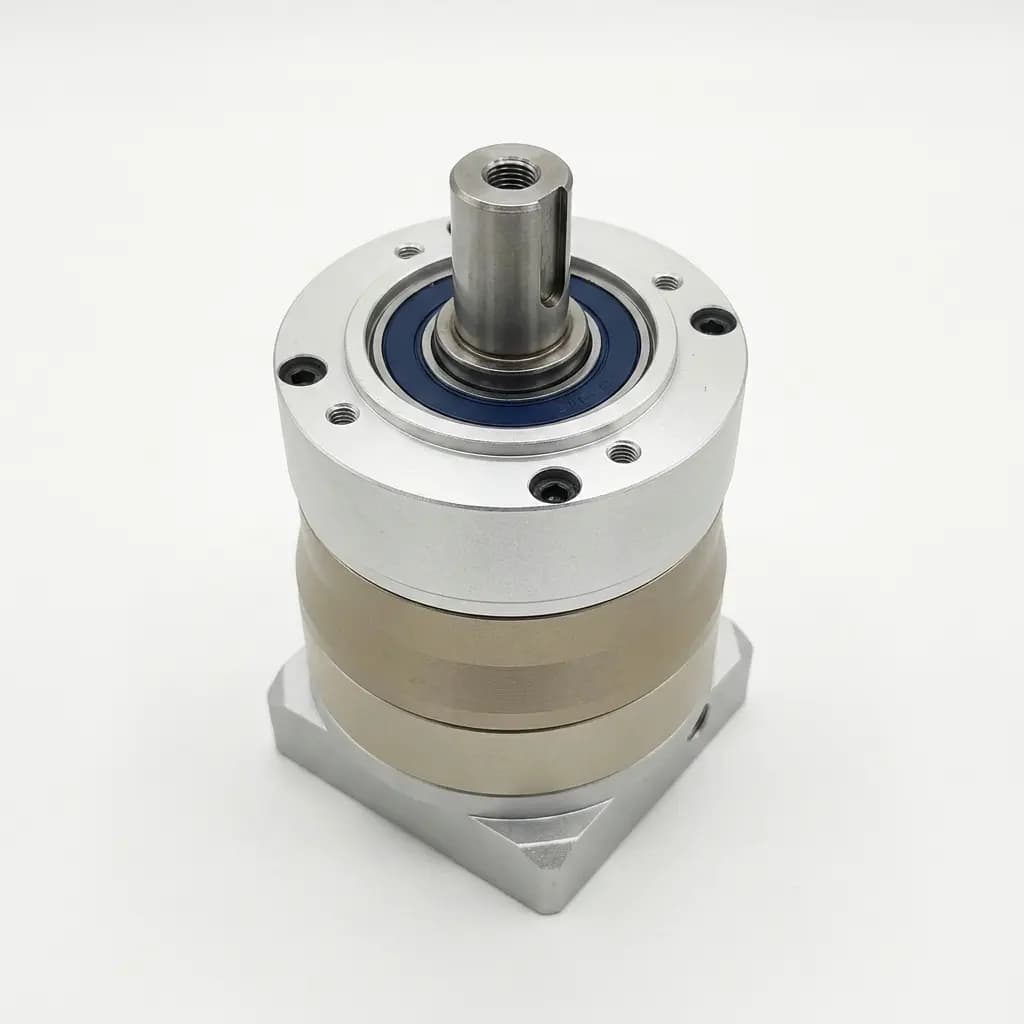

Multi-stage coaxial option for higher ratio targets

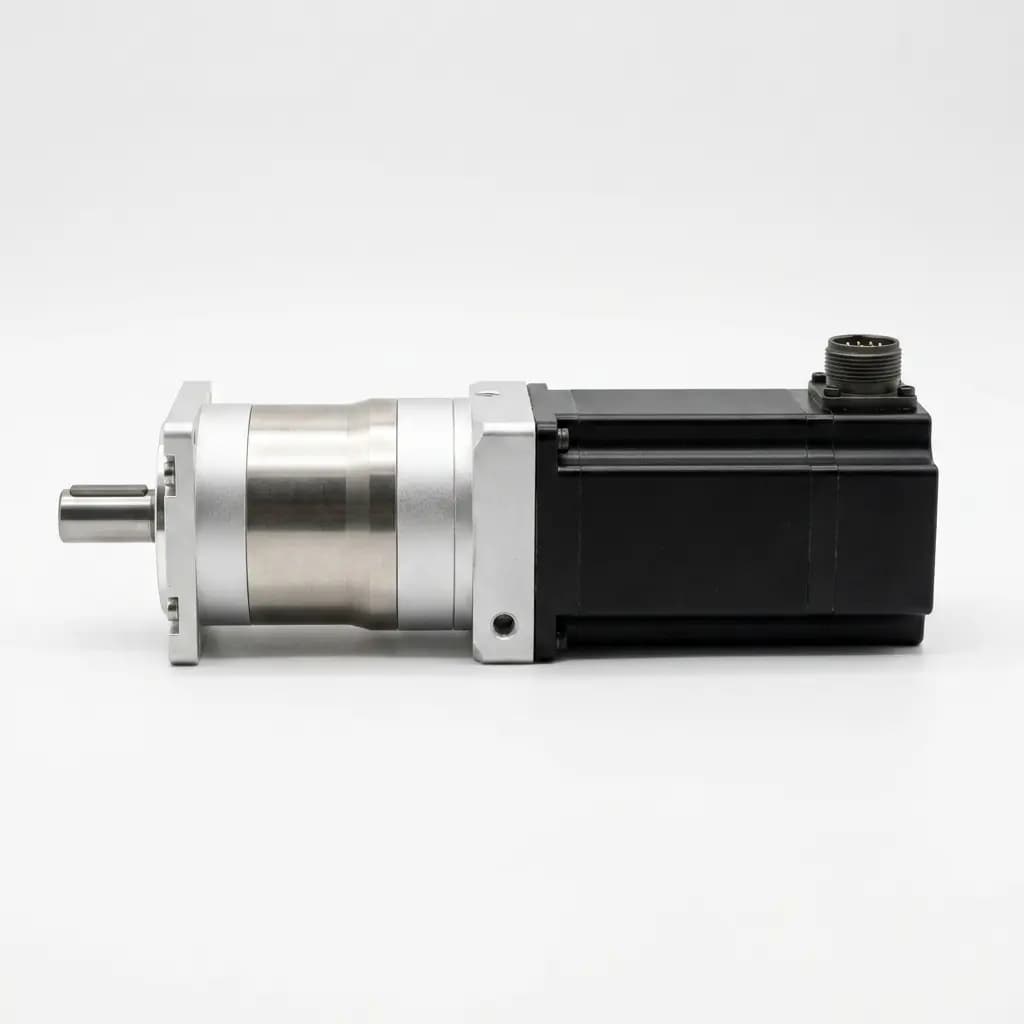

Complete drive-unit view for integration reference
Application fit
- Linear transfer and gantry subsystems
- Material handling and pick-and-place modules
- General industrial motion-control equipment
Key specs
- Coaxial input/output structure for linear layout design
- Available in compact and multi-stage variants
- Low-backlash options for positioning-sensitive axes
- Industrial mounting formats for standard motor adaptation
Compatibility context
- Servo and stepper interface validation support
- Mounting dimension checks for replacement projects
- Input shaft and flange customization discussions
OEM customization notes
- Series selection can be tuned for ratio, inertia, and duty cycle targets.
- Design-stage support helps reduce iteration before pilot order.
Selection Briefing Checklist
Use this checklist before requesting quotation so proposals are comparable and engineering-usable.
| Checklist Item | Required Information |
|---|---|
| Motion requirement fit | Ratio target, output speed, rated and peak torque window. |
| Precision requirement fit | Backlash class expectation and repeatability sensitivity. |
| Mechanical interface fit | Motor model, pilot diameter, bolt pattern, input/output shaft format. |
| Duty and environment fit | Duty cycle, ambient temperature, sealing and vibration context. |
| Commercial delivery fit | Sample quantity, pilot batch, annual demand, lead-time target. |
Expected Response Deliverables
- Series-level recommendation with key assumptions
- Compatibility notes for interface constraints
- OEM feasibility comments for non-standard requests
- Separated sample and production lead-time guidance
