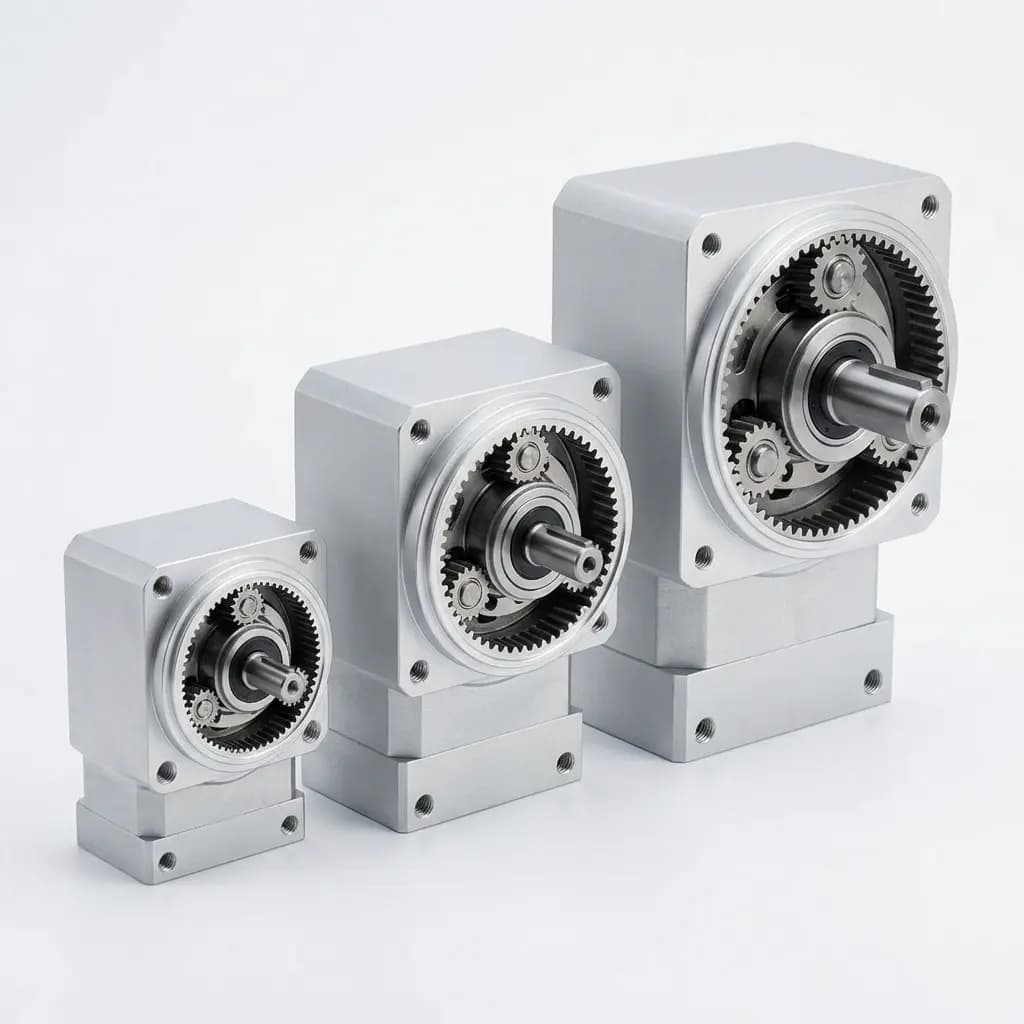

Compact 90-degree lineup for envelope-constrained systems
Product Series
Right Angle Planetary Gearbox
90-Degree Layout for Compact Machine Design
Designed for installations where space constraints require orthogonal transmission while maintaining precision and torque density.
Visual references
Image set selected by model naming semantics for quick engineering context.

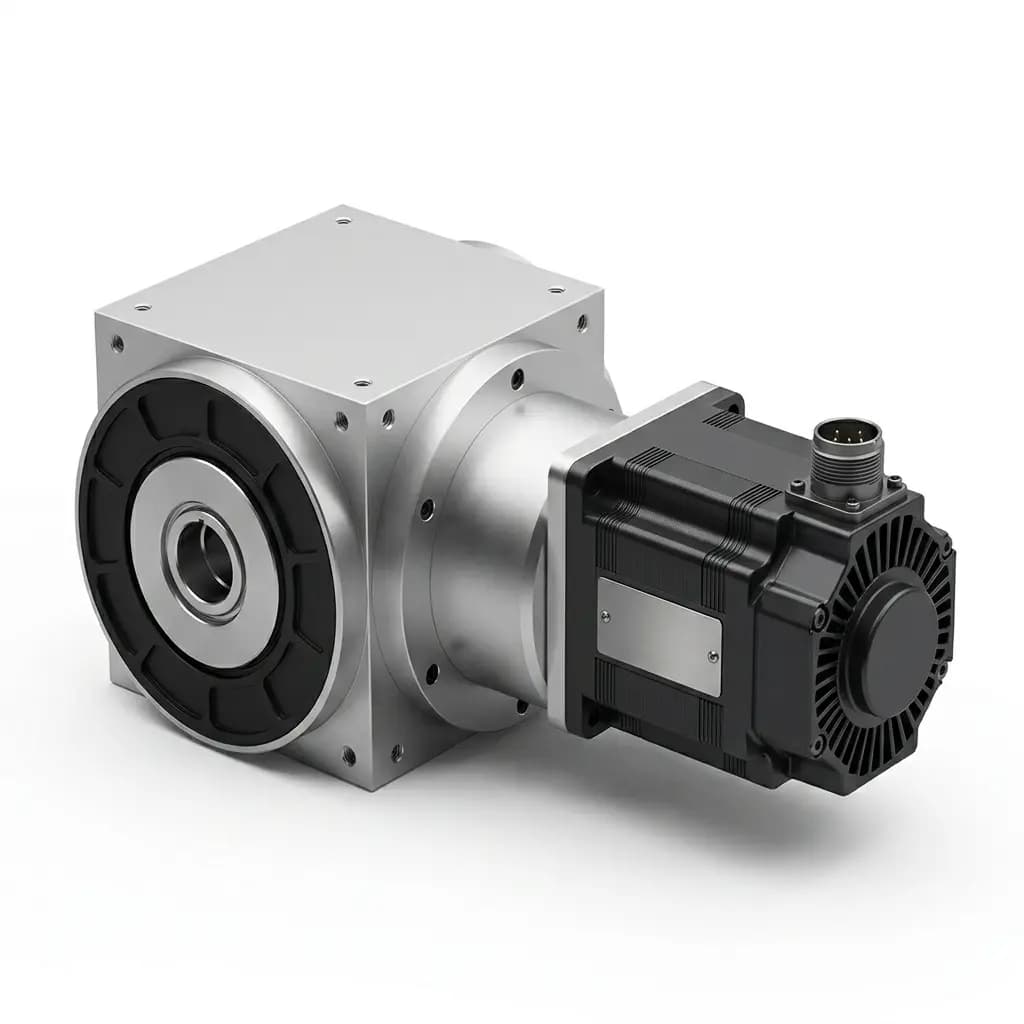

Servo motor assembly for integration reference
Top-down view showing orthogonal power transmission

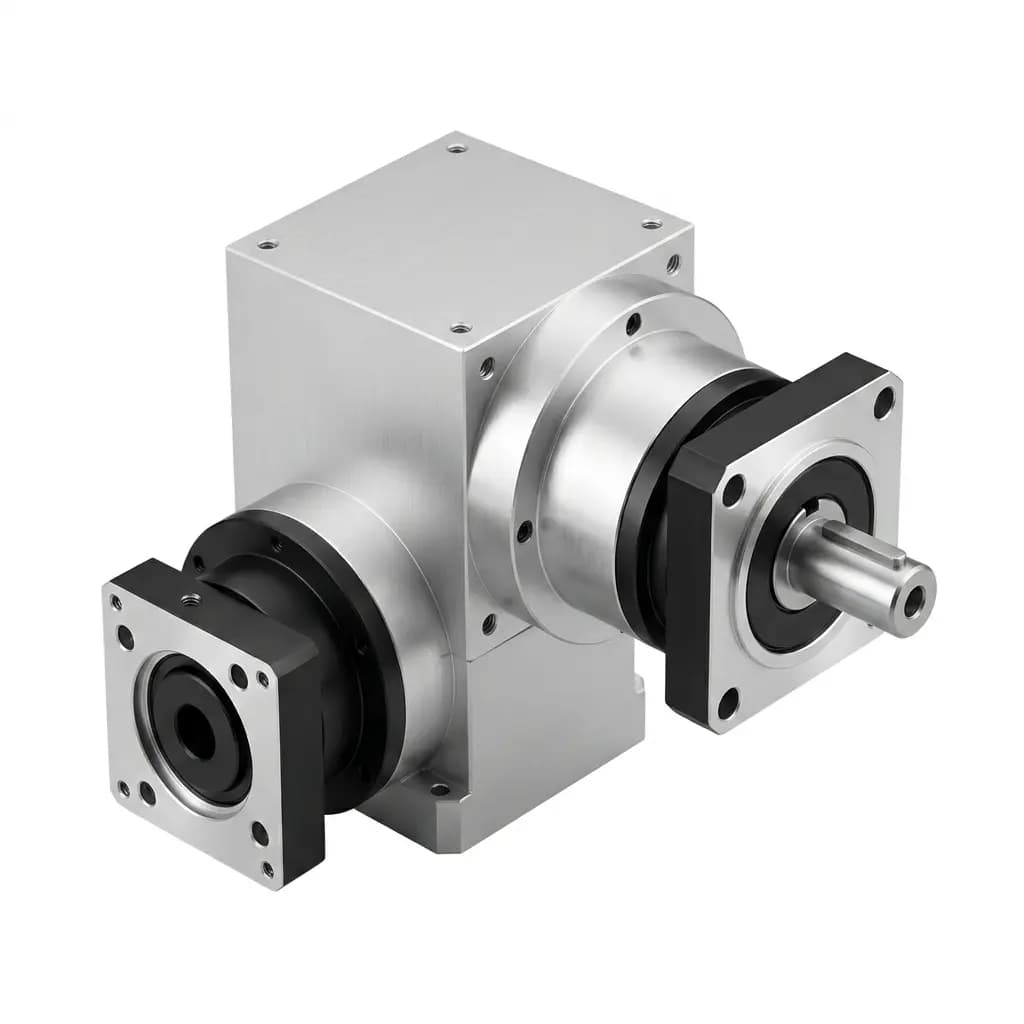

Dual-output shaft variant for special transmission layouts

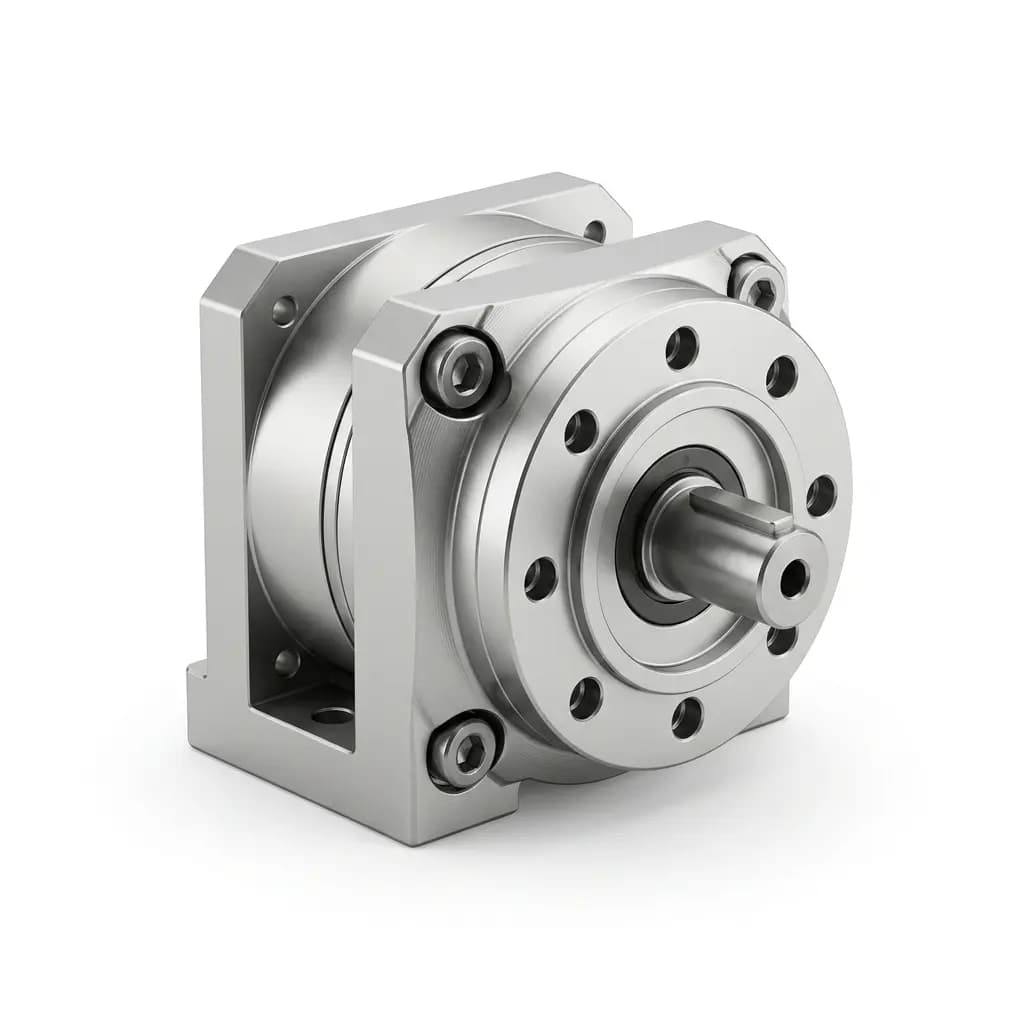

Low-profile flat design for AGV wheel-drive applications
Custom input interface example for OEM adaptation
Application fit
- AGV/AMR mechanical transmission subsystems
- Compact packaging and printing machine modules
- Space-limited robotic and handling axes
Key specs
- Right-angle power flow for compact mechanical layouts
- Low-backlash classes for precision indexing needs
- Stable output stiffness for intermittent high-load duty
- Multiple output and flange configuration options
Compatibility context
- Servo motor adapter interface verification
- Output shaft/flange format review for drop-in projects
- Integration guidance for custom frame envelopes
OEM customization notes
- Dual-output, hollow, and special-mount variants are available on request.
- Replacement feasibility is validated by dimensions and operating load profile.
Selection Briefing Checklist
Use this checklist before requesting quotation so proposals are comparable and engineering-usable.
| Checklist Item | Required Information |
|---|---|
| Motion requirement fit | Ratio target, output speed, rated and peak torque window. |
| Precision requirement fit | Backlash class expectation and repeatability sensitivity. |
| Mechanical interface fit | Motor model, pilot diameter, bolt pattern, input/output shaft format. |
| Duty and environment fit | Duty cycle, ambient temperature, sealing and vibration context. |
| Commercial delivery fit | Sample quantity, pilot batch, annual demand, lead-time target. |
Expected Response Deliverables
- Series-level recommendation with key assumptions
- Compatibility notes for interface constraints
- OEM feasibility comments for non-standard requests
- Separated sample and production lead-time guidance
